Professional Injection Mould Maker

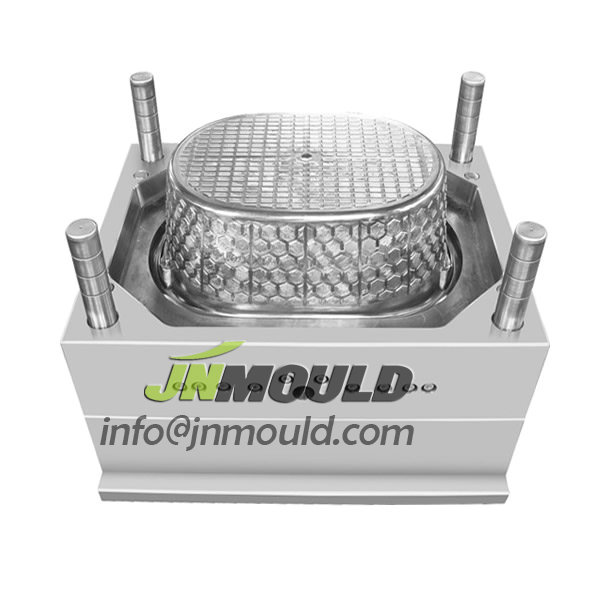

Plastic Basket Mould Factory

Join Date: 2020-01-03

As a professional basket mould factory in china, Jnmould has produced many different types of plastic basket mould, such as shopping basket mould, laundry basket mould, storage basket mould, etc. Cooling and rapid prototyping are the key requirements of this kind of mould, we have accumulated some experience in many years of production.

1. Beryllium copper is used at the top of the core part of the plastic basket mould to increase the cooling effect, improve the quality of the basket and the production efficiency of the basket mould.

2. The plastic basket mould has many bumping holes. When designing the basket mould, the reasonable parting surface and R angle should be considered to avoid the phenomenon of bumping through holes and running edges. At the same time, the reasonable cooling channel are designed on both sides of the core and cavity to avoid the issue of welding line.

3. In terms of material selection of plastic basket mould, we generally recommend 2738. Good polishing performance increases the glossiness of the product surface, and plastic basket mould can have a long mould life under rapid and high-pressure injection.

basket mouldplastic basket mould
