Plastic Pallets Making And Advantages

Join Date: 2021-03-30

Advantages of plastic pallets: 1. Convenient operation; 2. Wide application range; 3. Convenient handling; 4. Can be matched with non-slip rubber to ensure that materials won’t slip during handling and transportation; 6. Long service life and recyclable usage; 7. Plastic pallets are safe, hygienic, insect- and moth-proof, and no repairs are required.

Disadvantages of plastic pallets: Affected by the plastic pallet mould, the structure and size of plastic pallets are poor in randomness. Manufacturers must continue to develop and gradually enrich their product categories. But for special size requirements, sometimes it cannot be met. Since the repairability is very low after damage, it can only be scrapped, but the waste can be recycled after a certain degree of damage.

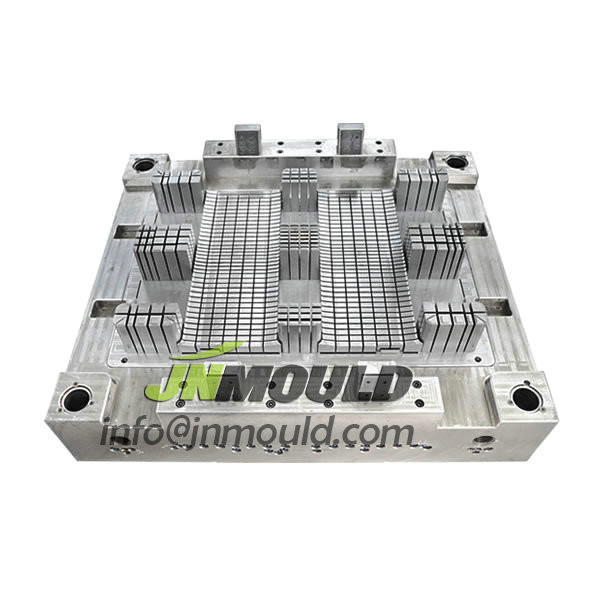

Pallet Mouldplastic pallet mold

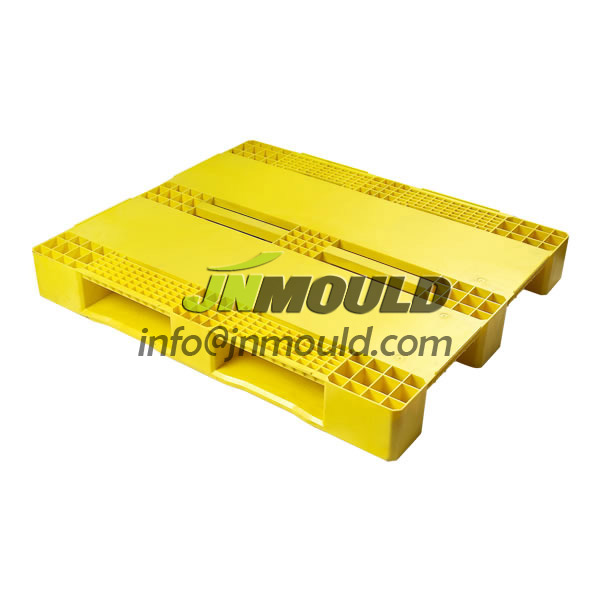

Plastic pallets are warehousing and logistics products widely used in warehousing and transportation industries. According to the production process, plastic pallets can be generally divided into three categories: injection molded pallets, blow molded pallets and blister pallets. These three types of pallets are collectively referred to as plastic pallets, because they are all related to the plastic process, so you should pay attention to the manufacturing process of the pallet when buying a pallet mould.

The blow moluding equipment used in blow moulding pallets is generally a relatively large hollow moulding machine, which generally uses HDPE as raw material, so the quality of its products is good in the quality level of plastic pallets. Moreover, the blow-molded pallet has a novel and unique shape, a reasonable structural design, and a groove design on the surface, which has good anti-slip properties and no corners. In addition, the moulding process is fast and sufficient; the product is fully molded, and the internal quality and performance are stable. In particular, blow-molded trays have many characteristics such as aging resistance, corrosion resistance, moisture resistance, oil stain resistance, and easy cleaning and disinfection. At present, they are more and more widely used in the fresh cold chain and food industry.

The plastic raw materials are melted and injected into the plastic pallet mould during produce the plastic pallet. Once the molten plastic enters the mould and cools, a plastic pallet with the same shape as the film cavity is obtained. This process is usually completed by an injection moulding machine. The injection plastic tray has hard texture, stable chemical properties, non-toxic and tasteless, and won’t cause adverse effects on the product. After installing the steel pipe, the load-bearing capacity of the injection pallet can be greatly increased. Injection pallets can be placed on shelves and transported on pallets, but the reason for their large-scale use is that their production costs are high.

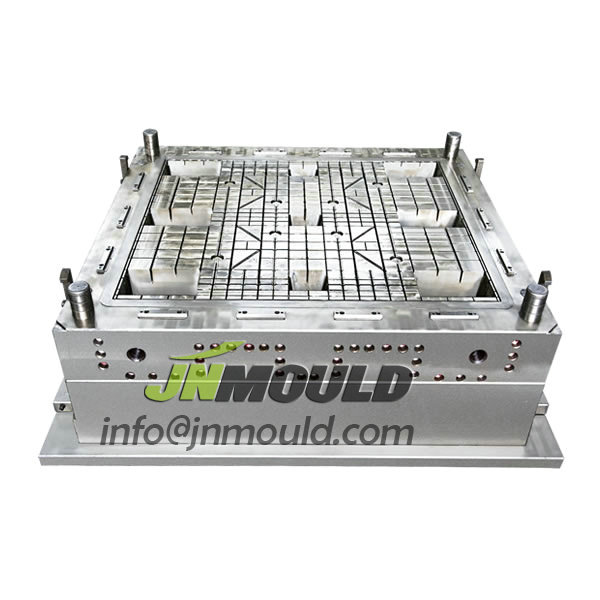

injection pallet mould

Blister pallet refers to a pallet processed by a blister process, which is a product formed by a rapidly developing plastic processing method. Some plastic trays are processed and formed by this process. It is mainly to heat the flat plastic hard sheet material to make it soft, and then use the vacuum adsorption method to cool the mold surface, and the mold cost of the blister process is higher than that of injection molding. To be small, suitable for small batch production, a pair of molds can make products of different materials and thicknesses. The blister process has restrictions on the shape of the tray, and the dimensional accuracy of the product is worse than that of injection molding. Mainly used in the electronics industry, toy industry, stationery industry, cosmetics industry, health products industry and other small-volume irregular products, mostly disposable products.

Jnmould has years of experience and mature technology in the design and processing of the pallet mould. At present, the main plastic pallets of the pallet are injection-molded pallets and blow-molded pallets. Among them, Tian-shaped injection-molded pallets, Sichuan-shaped injection-molded pallets and nine-foot blow-molded pallets are compared common.
